| MC-385V1V - General Specifications | |||
|---|---|---|---|
| Placement Specifications | |||
| Number of Placement Heads | 1 | ||
| Placement Rate (IPC-9850)* | 4,000 CPH | ||
| Placement Rate (Max.) | 5,000 CPH | ||
| Placement Accuracy | 30 µm, 3 Sigma | ||
| Minimum Component Size | 0201 (01005 optional) | ||
| Maximum Component Size | 100 mm x 150 mm (3.94" x 5.9") | ||
| Minimum Component Lead Pitch |
0.3 mm (0.012") | ||
| BGA/CSP Placement Capability | Yes - Standard | ||
| Alignment Method | Dual-Vision Alignment System | ||
| Pick Up Specifications | |||
| Tool Changer | Included | ||
| Number of Tools | 15 | ||
| Accepts Additional Tool Changers |
Yes | ||
| Integral Vacuum | Yes | ||
| PCB Specifications | |||
| PCB Loading Method | Manual, In/Out Conveyor or Inline Conveyor | ||
| Max. Placement Area | 350 mm x 435 mm (13.8" x 17.1") | ||
| Fiducial Recognition/ Coordinate Correction | Yes | ||
| Bad Mark Detection | Yes | ||

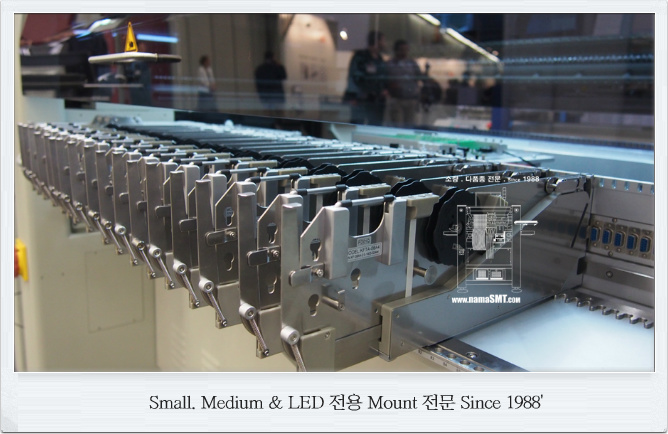

| Feeder Capacity | |||
| Maximum Number of Feeder Ports |
128 | ||
| Programming | |||

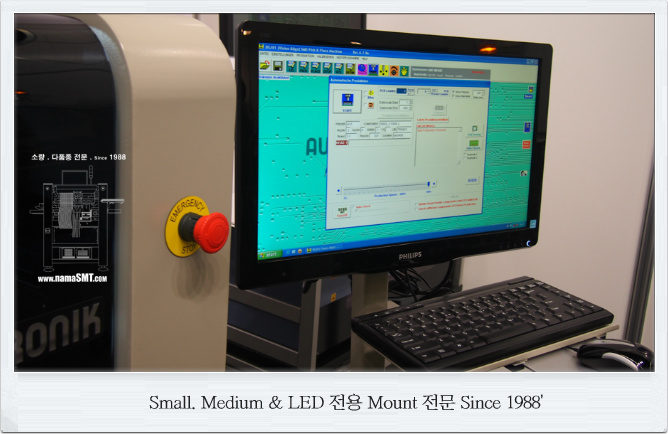

| Operating System | Windows? Based | ||

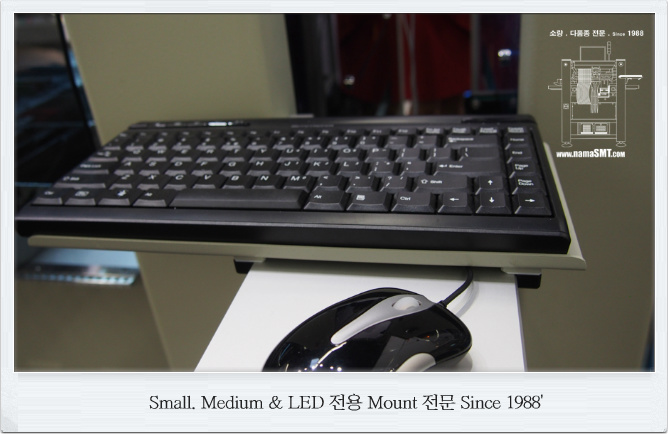

| PC, Keyboard, Mouse | Yes | ||
| Monitor | Flat LCD | ||
| Teaching Camera | Yes | ||
| Numeric Data Entry | Yes | ||
| CAD Download | Yes | ||
| Step and Repeat for Matrix Boards |
Yes | ||
| Bar Code Reader for Feeders & Packaging |
Yes | ||
| MIS and Optimization Functions | Yes | ||
| Off-Line Programming | Yes | ||
| Dispenser Specifications | |||
| Dispensing Head | Optional | ||
| Dispense Method | Time/Pressure | ||
| Dot Size / Placement Speed | Down to 0.5 mm / Up to 8,000 dots./sec | ||
| Mechanical Specifications | |||
| X-Y Axis Drive Mechanism | Ball Screw | ||
| X-Y Axis Drive Motors | AC Servo | ||
| X-Y Axis Encoding | Linear | ||
| X-Y Axis Resolution | 0.005 mm (0.0002") | ||
| X-Y Axis Repeatability | ±0.01 mm (10 µm) | ||
| Z Axis Drive Motor | DC Servo | ||
| Z Axis Encoding | Rotary | ||
| Z Axis Resolution | 0.02 mm (0.0008") | ||
| Θ Axis Drive Motor | DC Servo | ||
| Θ Axis Encoding | Rotary | ||
| Θ Axis Resolution | 0.045° | ||
| Θ Axis Range of Motion | 360° | ||
| Physical Specifications | |||
| Overall Dimensions (Approx. L x W x H) |
1270 mm L x 990 mm W x 1320 mm H (50" x 39" x 52") |
||
| Approximate Net Weight | 660 kg (1455 lbs.) | ||
| Facility Requirements | |||
| Standard Voltage | 220 VAC, 50/60 Hz | ||
| Air Pressure | 80 psi, 4 CFM | ||
| Service and Support | |||
| Remote Diagnostics | Ethernet | ||
| Warranty (Major Components) | 1 Year | ||

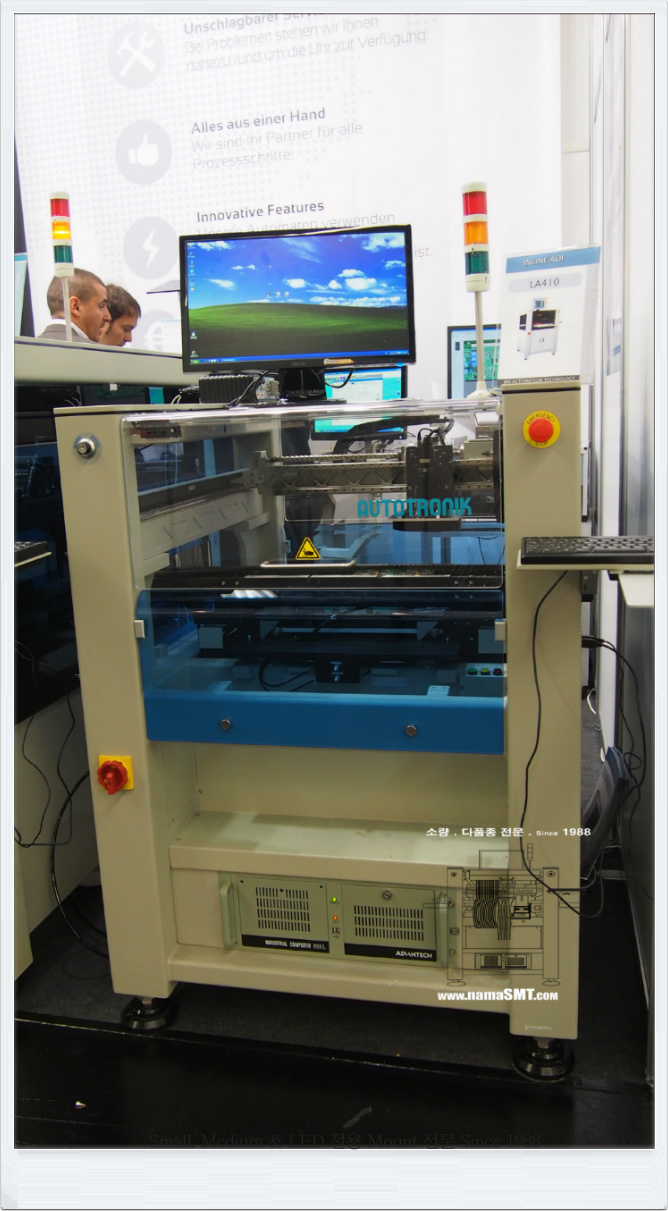

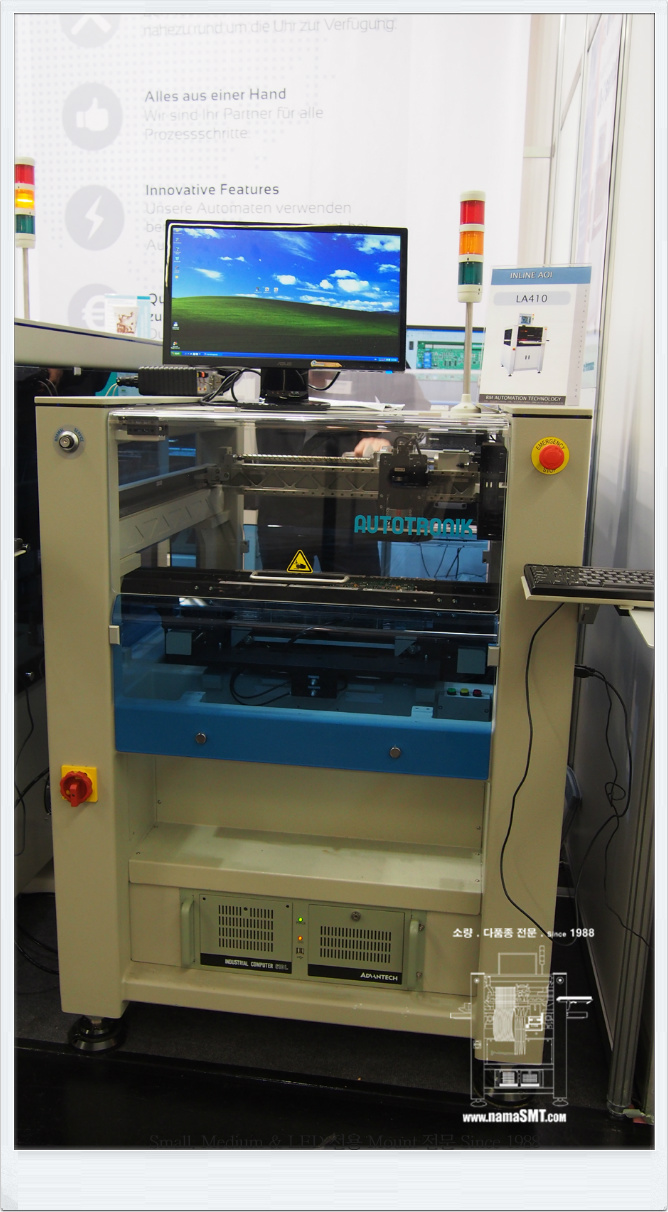

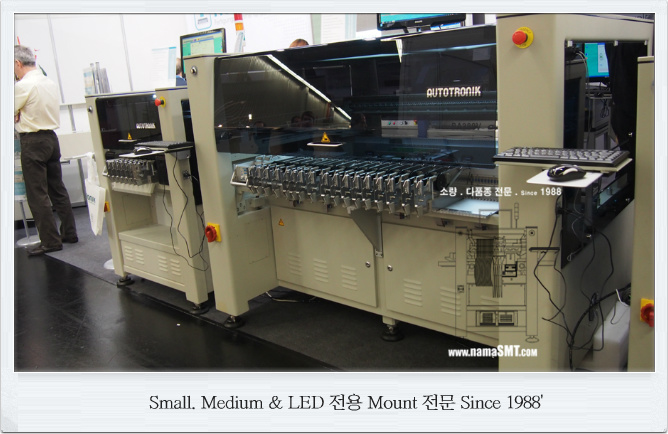

MC-385V1V pick & place machine:
DP4 Dispenser for all Manncorp MC Series Machines

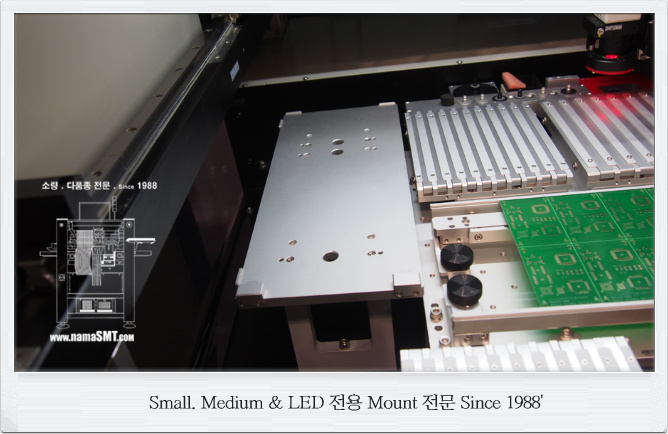

Loose parts pickup from bulk trays:
MC-385V.1V/V2 SMT Pick & Place Machine Features
